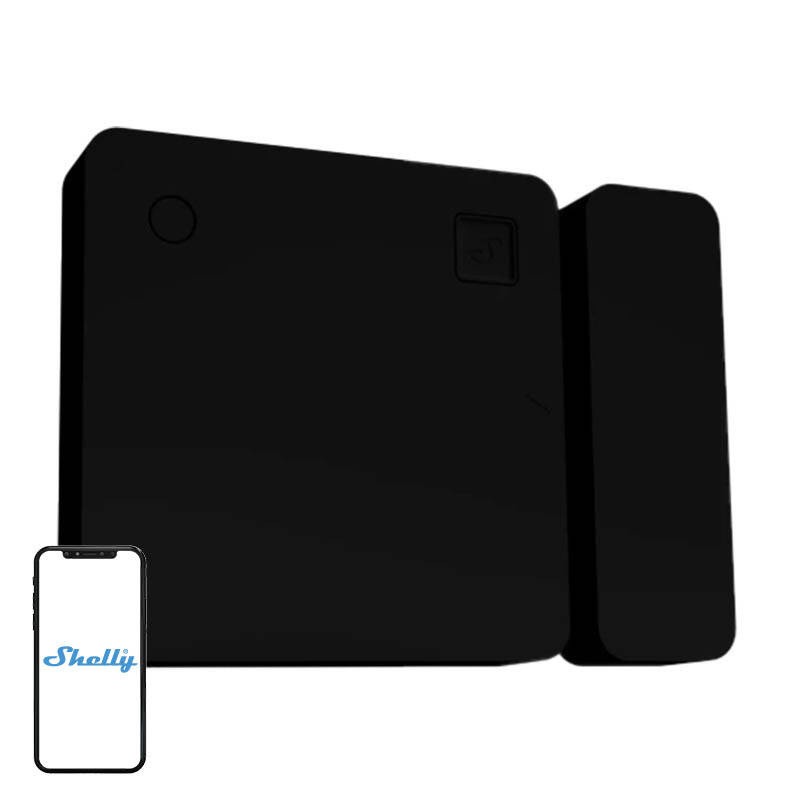

Shelly BLU Door/Window Sensor (Black)

2 operating modes

In Regular mode, the device sends information about the current status of the door/window, light intensity and battery status every time it is opened/closed. In addition, it checks the tilt angle every 8 seconds. In Beacon mode, on the other hand, the sensor sends information about the current opening/closing status, light intensity and battery status every 30 seconds. You enable the mode in the device settings in the Shelly Smart Control app.

Technical specifications

• Manufacturer: Shelly
• Model: BLU Door/Window
• Color: black
• Dimensions: 35 × 35 × 7 mm ±0.5 mm (Sensor Unit), 35 × 12 × 7 ±0.5 mm (Magnet)
• Weight: 10 g ±1 g (sensor + battery), 8 g ±1 g (magnet)
• Material: Plastic
• Ambient temperature: -20 °C to 40 °C
• Humidity: 30% to 70% relative humidity
• Power supply: 1x 3 V CR2032 battery (included)
• Battery life: 5 years
• Reed switch: Yes
• G-sensor: Yes
• Light sensor: Yes
• RF band: 2400 - 2483.5 MHz
• Max RF power: 4 dBm
• Bluetooth version: 4.2
• Bluetooth range: Up to 10 m, indoors, up to 30 m outdoors (Depends on local conditions)
• Encryption: AES (CCM mode)

Shelly BLU Bluetooth door/window sensor (black)

Shelly BLU detects the opening and closing of doors and windows and has a light sensor. It can also measure the angle of the door or window. It is powered by a CR2032 battery (included), which has a life of 5 years. It will find its use in homes, offices, restaurants, stores, hotels, etc. In addition, it connects wirelessly via Bluetooth 4.2 and provides a range of up to max. 30 m.

2 operating modes

In Regular mode, the device sends information about the current status of the door/window, light intensity and battery status every time it is opened/closed. In addition, it checks the tilt angle every 8 seconds. In Beacon mode, on the other hand, the sensor sends information about the current opening/closing status, light intensity and battery status every 30 seconds. You enable the mode in the device settings in the Shelly Smart Control app.

Technical specifications

• Manufacturer: Shelly
• Model: BLU Door/Window
• Color: black
• Dimensions: 35 × 35 × 7 mm ±0.5 mm (Sensor Unit), 35 × 12 × 7 ±0.5 mm (Magnet)
• Weight: 10 g ±1 g (sensor + battery), 8 g ±1 g (magnet)
• Material: Plastic
• Ambient temperature: -20 °C to 40 °C
• Humidity: 30% to 70% relative humidity
• Power supply: 1x 3 V CR2032 battery (included)
• Battery life: 5 years
• Reed switch: Yes
• G-sensor: Yes
• Light sensor: Yes
• RF band: 2400 - 2483.5 MHz
• Max RF power: 4 dBm
• Bluetooth version: 4.2
• Bluetooth range: Up to 10 m, indoors, up to 30 m outdoors (Depends on local conditions)
• Encryption: AES (CCM mode)

• Ühenduvus: Bluetooth
• Rakendus: Google Home, Amazon Alexa
• Toiteallika toide: Aku
